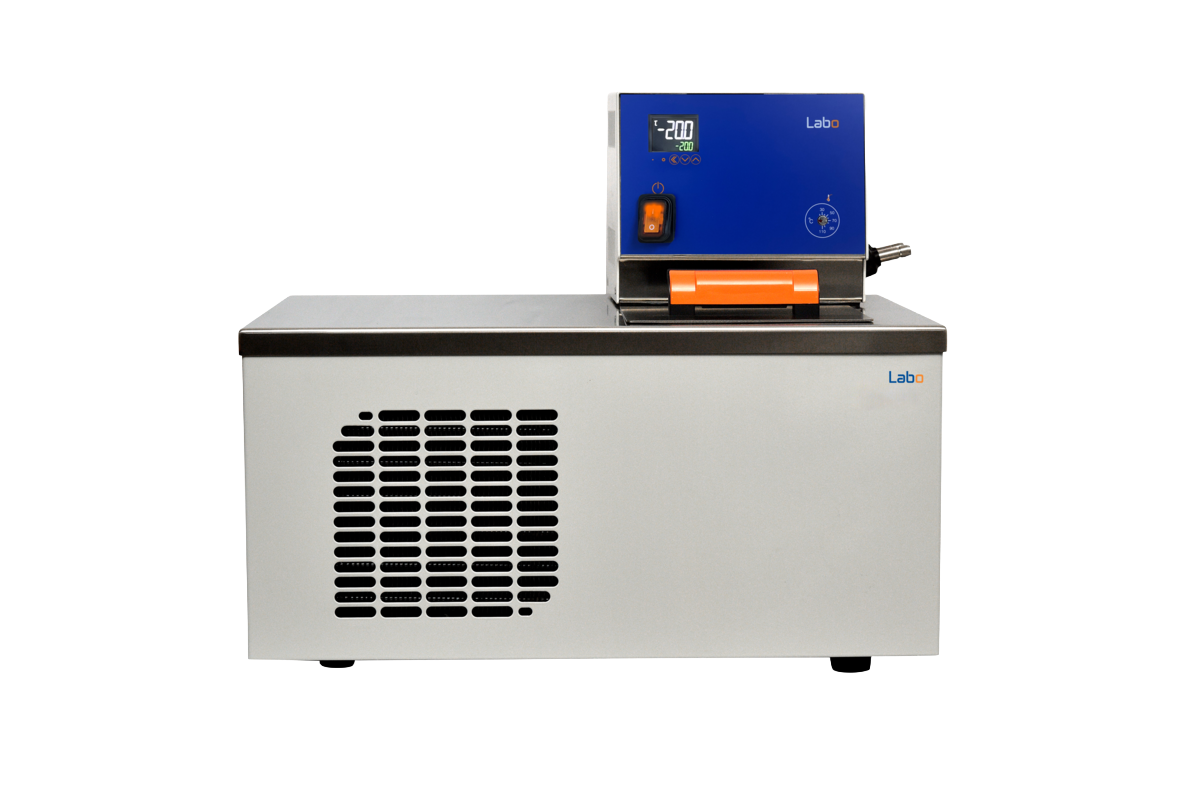

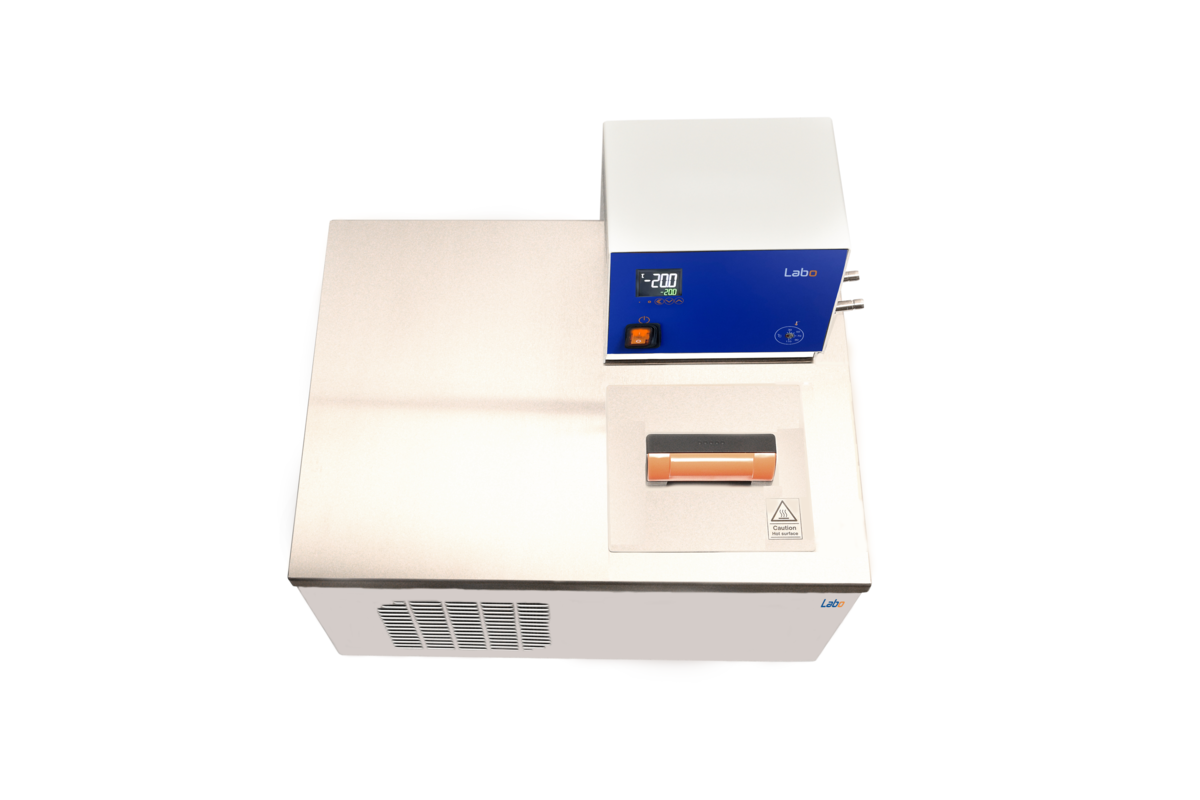

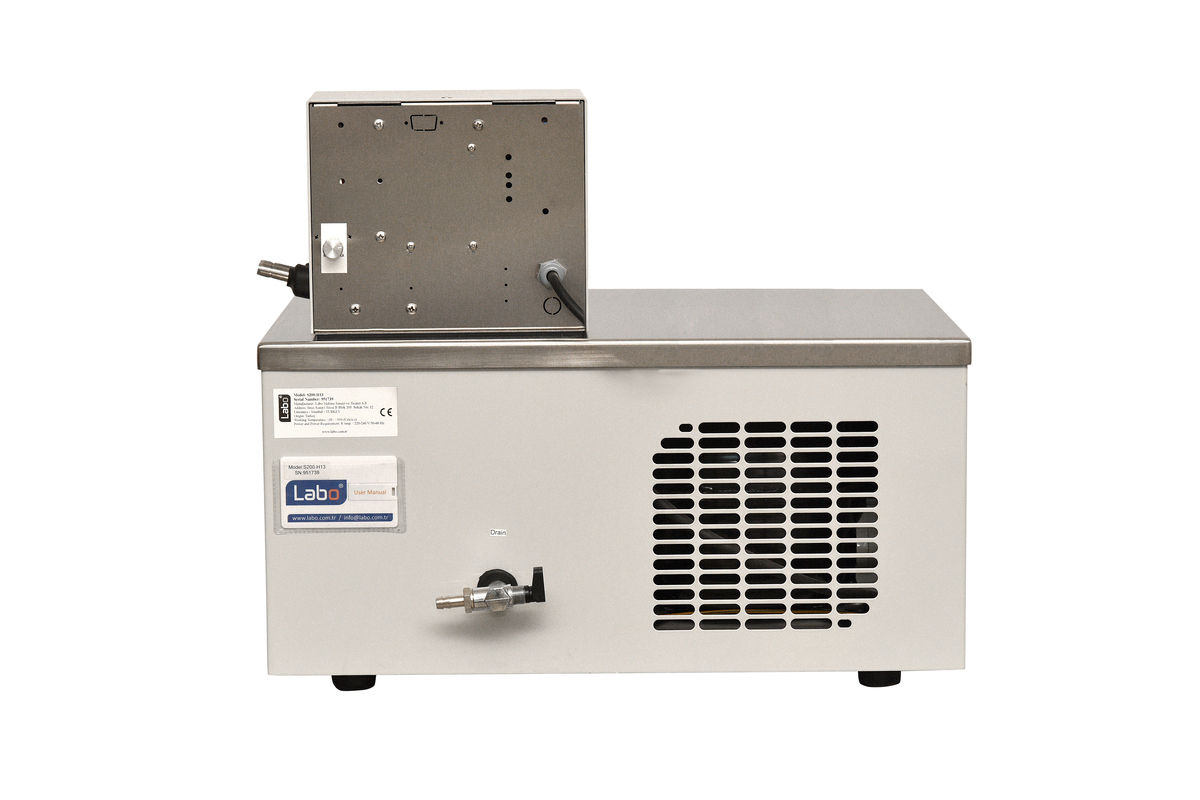

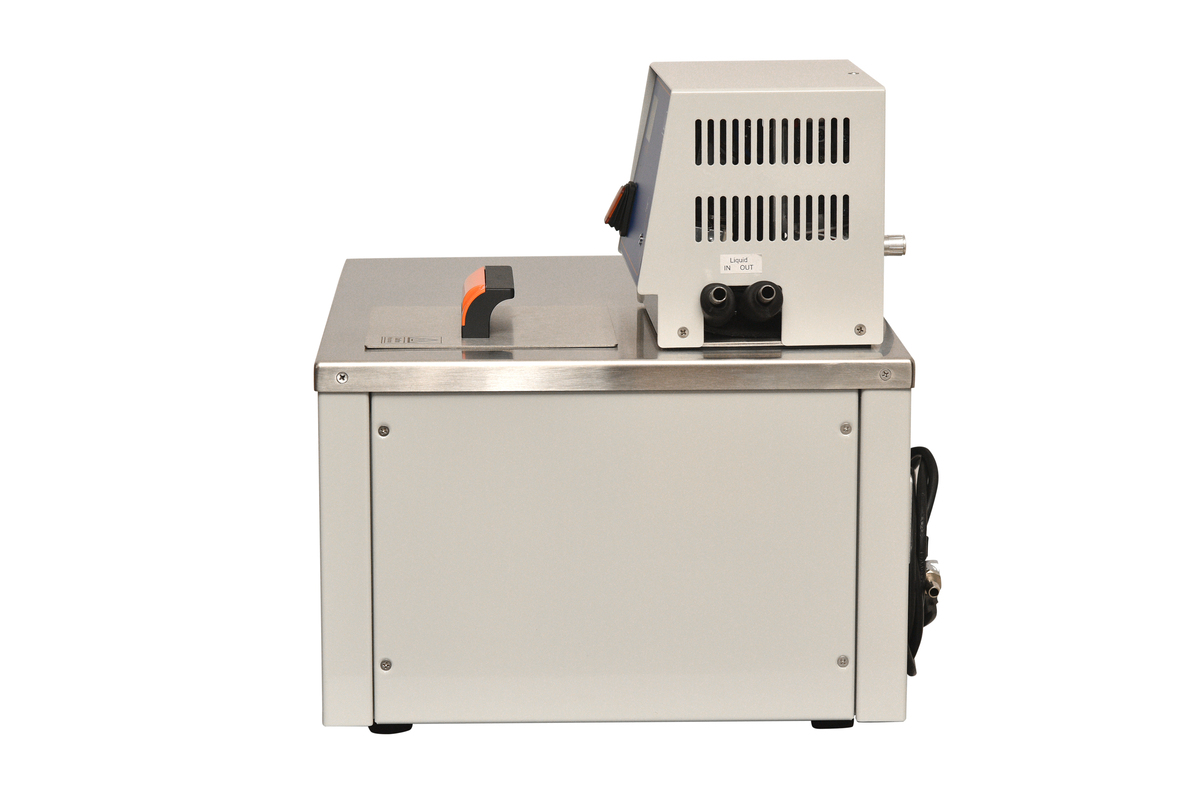

S Series
Refrigerated and Heating Circulators
Common Fetures
Display Type
Digital
Operating Temperature Range
-20 °C - 100 °C
Temperature Stability
±0,03 °C
Heating Capacity
2000 watt
Cooling Capacity
250 watt
Circulation Type
Internal+External
Speed-Controlled Pump Flow
5 - 21 l/min (Adjustable)
Pump Pressure Range
0,1 - 0,6 bar
Bath Opening
140 x 145 mm
Filling Volume
5 - 7
Overheat Protection & Acoustic Alarm
Over Temperature Protection
Low Liquid Level Warning System
None
Display Resolution
0,1°C (0,01°C optional)
Operating Temperature Range
-20 °C - 100 °C
Temperature Stability
±0,03 °C
Heating Capacity
2000 watt
Cooling Capacity
250 watt
Circulation Type
Internal+External
Low Liquid Level Warning System
None
Overheat Protection & Acoustic Alarm
Over Temperature Protection
Pump Pressure Range
0,1 - 0,6 bar
Pump Connection
Ø10mm pipe connection
Refrigerant
Filling Volume
5 - 7
Bath Material
Stainless Steel
Bath Opening
140 x 145 mm
Bath Dept
155 mm
Wheeled
Width
510 mm
Length
430 mm
Height
425 mm
Net Weight
27 kg
Gross Weight
35 kg
HS/GTIP Code
84198990
Package Dimensions
550 mm x 550 mm x 550 mm
Power Supply
220-240V / 50-60 Hz
Nominal–Max Power Consumption
Max Power Consumption
Product List
| Product Code | Temp. Range (°C) | Bath Capacity (l) Min-Max | Bath Opening / Depth (mm) | Heating Capacity (kW) | Cooling Capacity(watt) @20°C | Temp. Stability (°C) | Circulation Type | Low Liquid Level Warning System | Over Temp. Safety System | Connections |
|---|---|---|---|---|---|---|---|---|---|---|
| S200-H23 | -20 °C / 100 °C | 5 / 7 | 140 x 145 mm / 155 mm | 2000 watt | 250 watt | ±0,03 °C | Internal+External | None | ||
| S200-H13 | -20 °C / 100 °C | 5 / 7 | 140 x 145 mm / 155 mm | 1100 watt | 250 watt | ±0,03 °C | Internal+External | None | ||
| S200-D13 | -20 °C / 100 °C | 5 / 7 | 140 x 145 mm / 155 mm | 1100 watt | 250 watt | ±0,03 °C | Internal | None | ||
| S100-H23 | -10 °C / 100 °C | 16 / 20 | 350 x 420 mm / 160 mm | 2000 watt | 310 watt | ±0,05 °C | Internal+External | None | ||
| S100-D23 | -10 °C / 100 °C | 16 / 20 | 350 x 420 mm / 160 mm | 2000 watt | 310 watt | ±0,05 °C | Internal | None |
