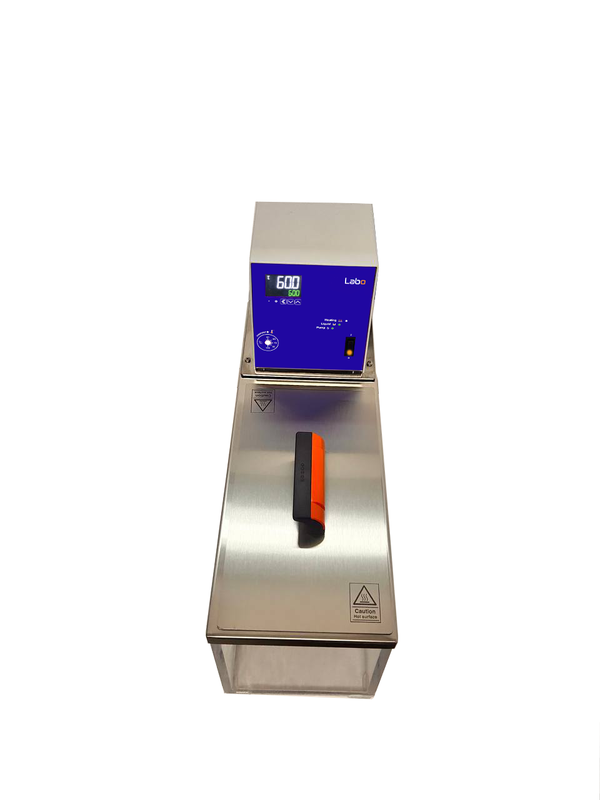

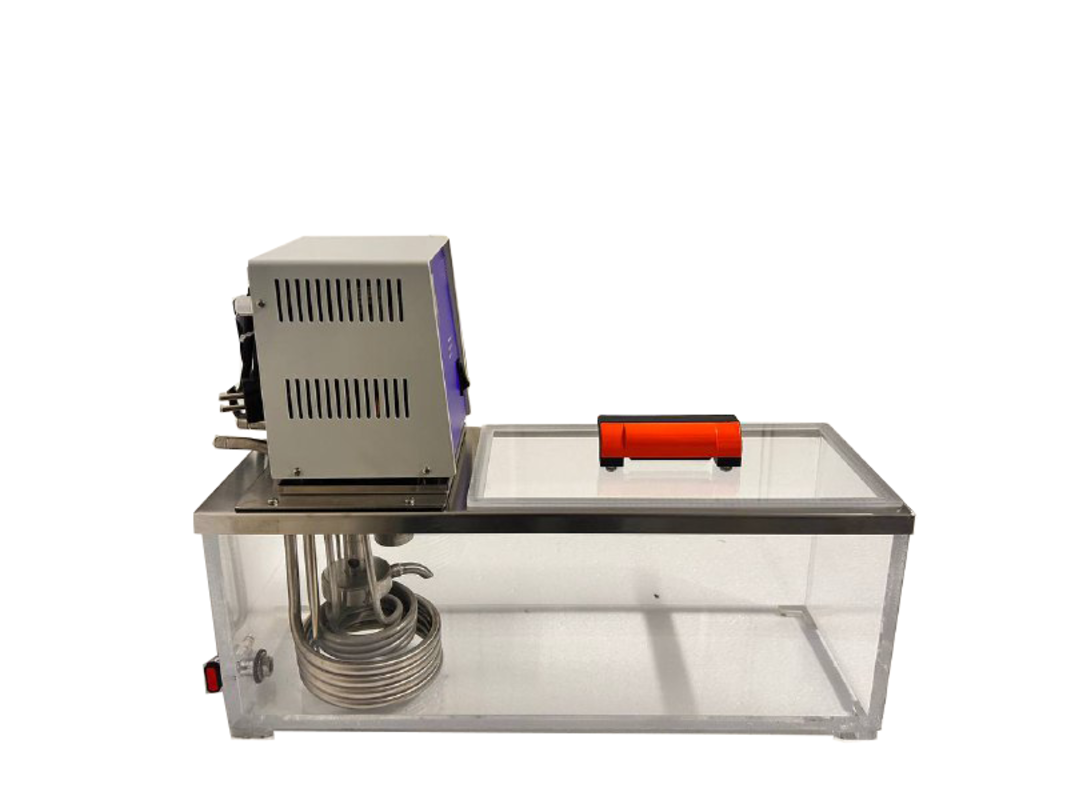

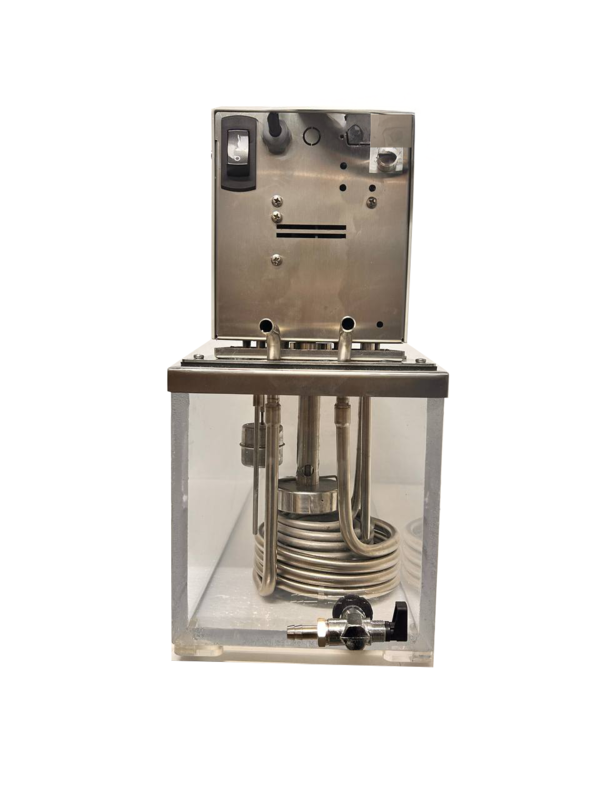

T Series
Refrigerated and Heating Circulators
Common Fetures
Display Type
Digital
Operating Temperature Range
+30 - +60
Temperature Stability
±0,05
Heating Capacity
2000 watt
Cooling Capacity
None
Circulation Type
Internal
Speed-Controlled Pump Flow
5 - 21 l/min (Adjustable)
Pump Pressure Range
0,1 - 0,6 bar
Bath Opening
150 x 300 mm
Filling Volume
8 - 10
Overheat Protection & Acoustic Alarm
Over Temperature Protection + Acoustic Alarm
Low Liquid Level Warning System
Exist
Display Resolution
0,1°C (0,01°C optional)
Operating Temperature Range
+30 - +60
Temperature Stability
±0,05
Heating Capacity
2000 watt
Cooling Capacity
None
Circulation Type
Internal
Low Liquid Level Warning System
Exist
Overheat Protection & Acoustic Alarm
Over Temperature Protection + Acoustic Alarm
Pump Pressure Range
0,1 - 0,6 bar
Pump Connection
None
Refrigerant
None
Filling Volume
8 - 10
Bath Material
Plexiglass
Bath Opening
150 x 300 mm
Bath Dept
170 mm
Wheeled
Width
170 mm
Length
470 mm
Height
360 mm
Net Weight
Gross Weight
HS/GTIP Code
84198990
Package Dimensions
280 mm x 280 mm x 280 mm
Power Supply
220-240V / 50-60 Hz
Nominal–Max Power Consumption
-
Max Power Consumption
Product List
| Product Code | Temp. Range (°C) | Bath Capacity (l) Min-Max | Bath Opening / Depth (mm) | Heating Capacity (kW) | Cooling Capacity(watt) @20°C | Temp. Stability (°C) | Circulation Type | Low Liquid Level Warning System | Over Temp. Safety System | Connections |
|---|---|---|---|---|---|---|---|---|---|---|
| Labo TH100-D22 | +30 / +60 | 8 / 10 | 150 x 300 mm / 170 mm | 2000 watt | None | ±0,05 | Internal | Exist |
